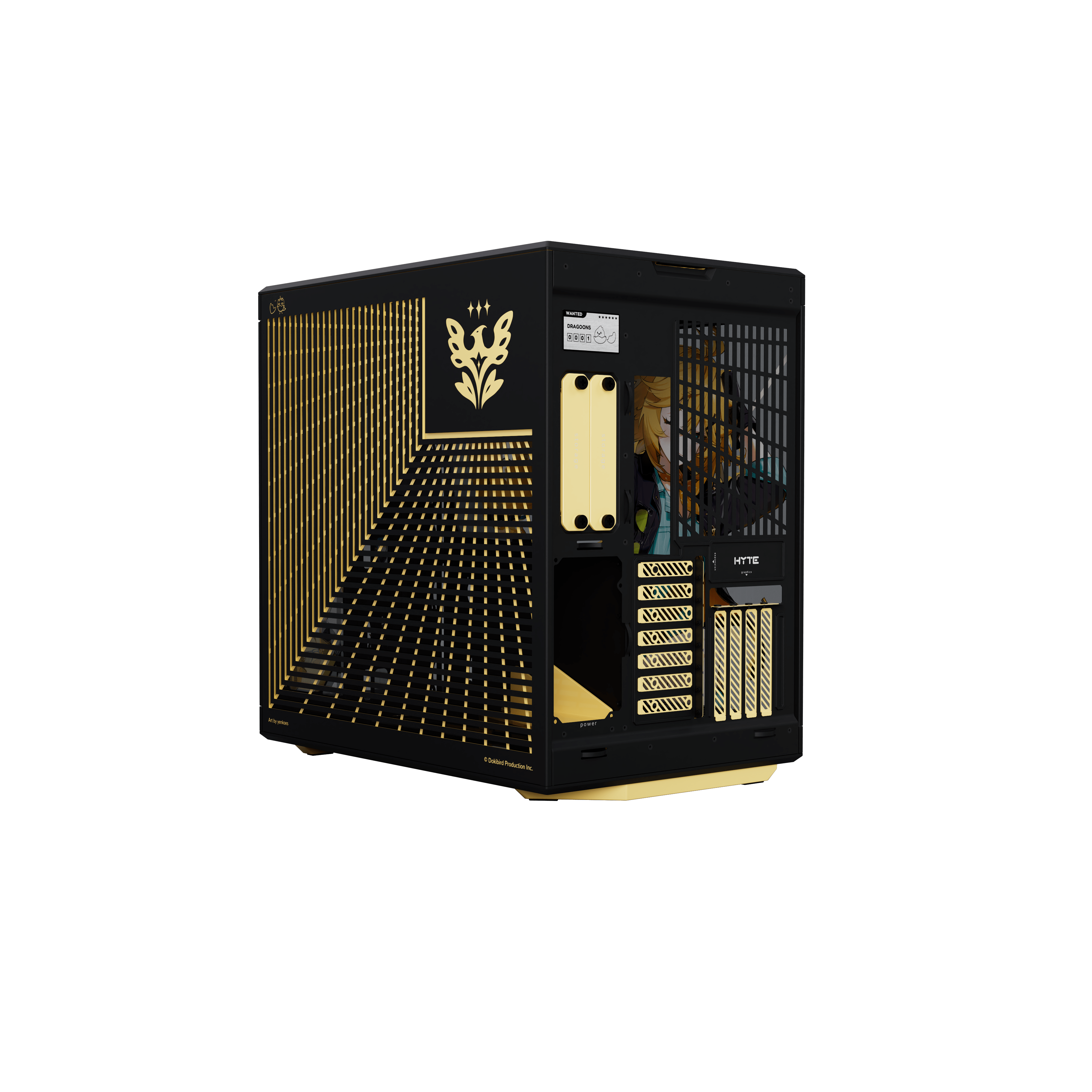

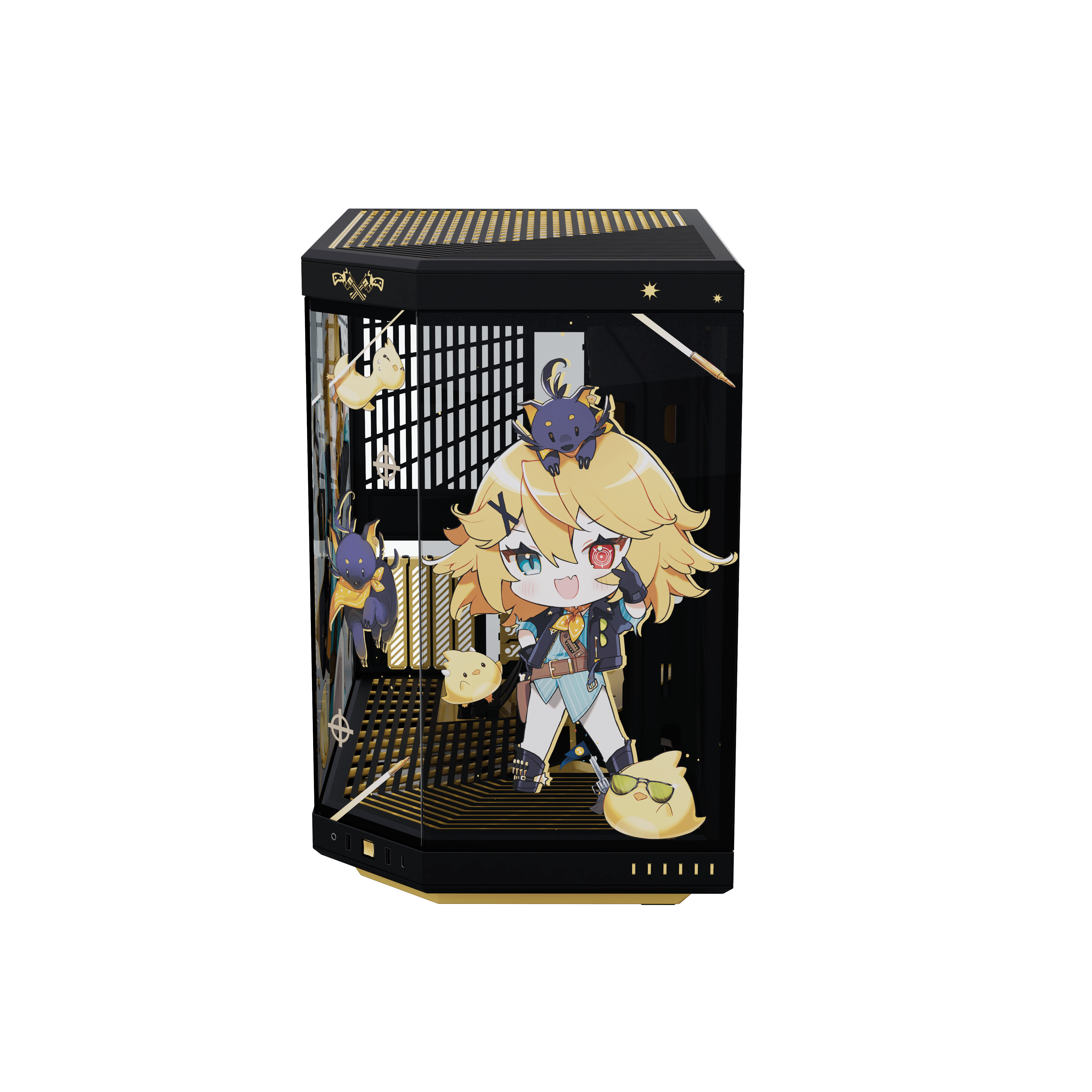

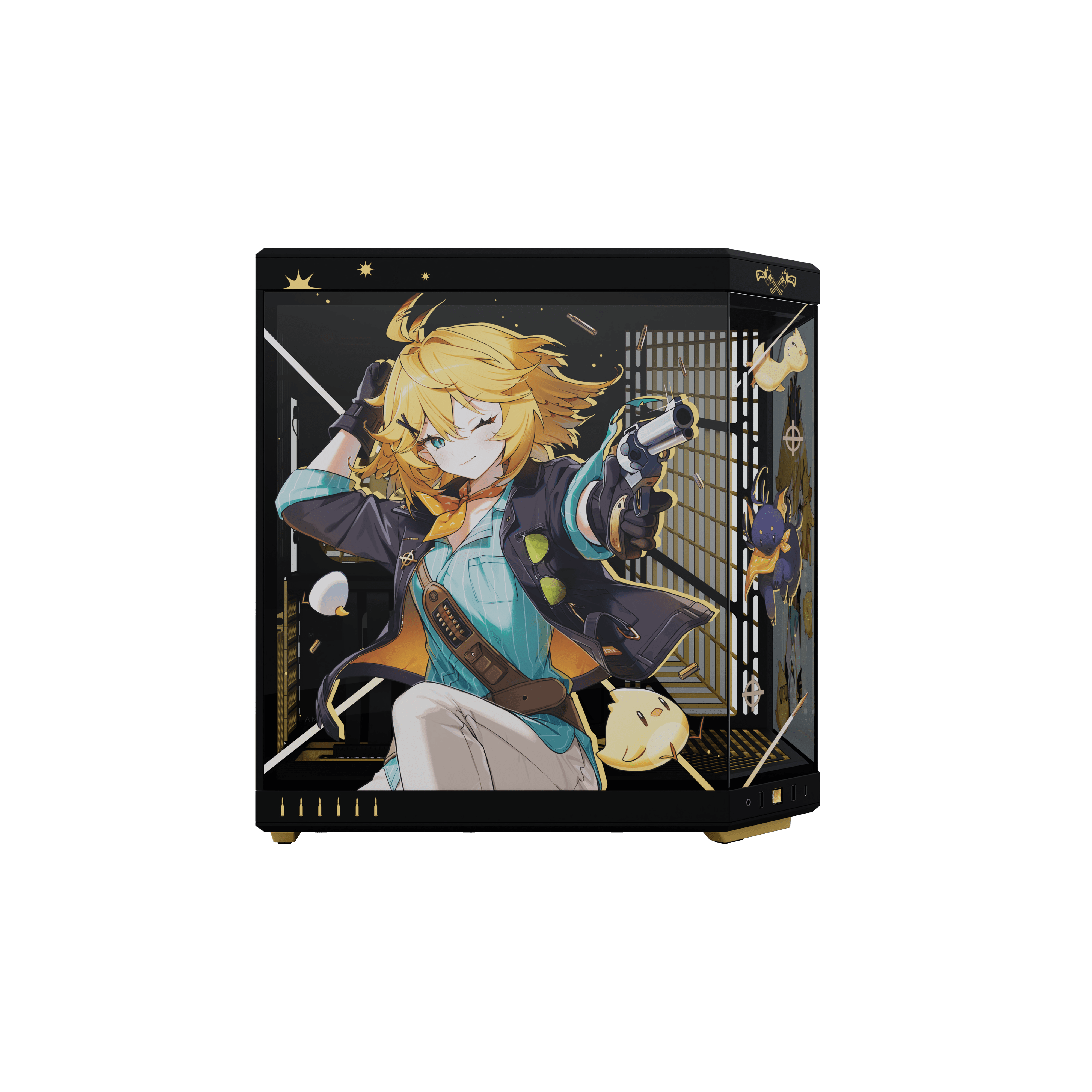

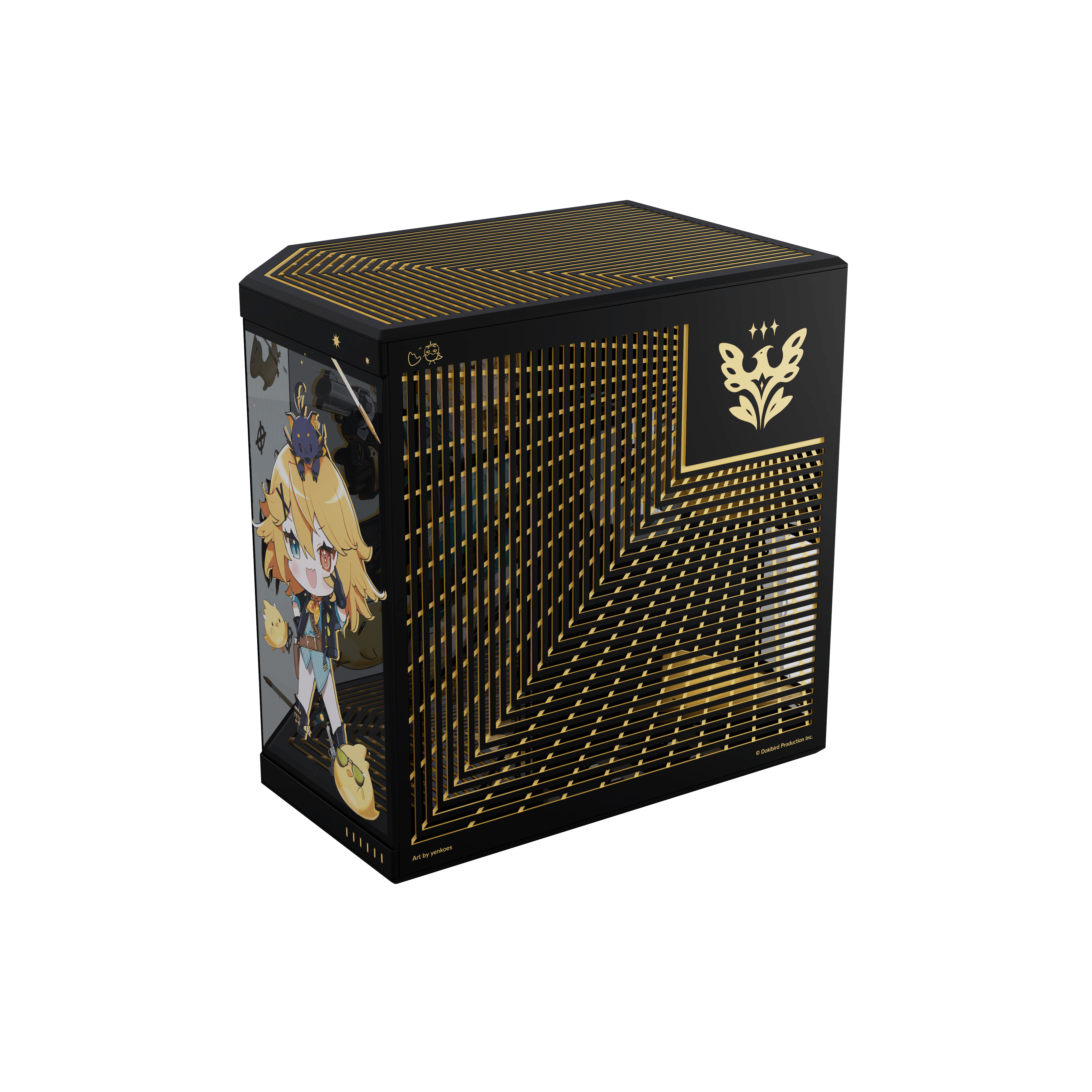

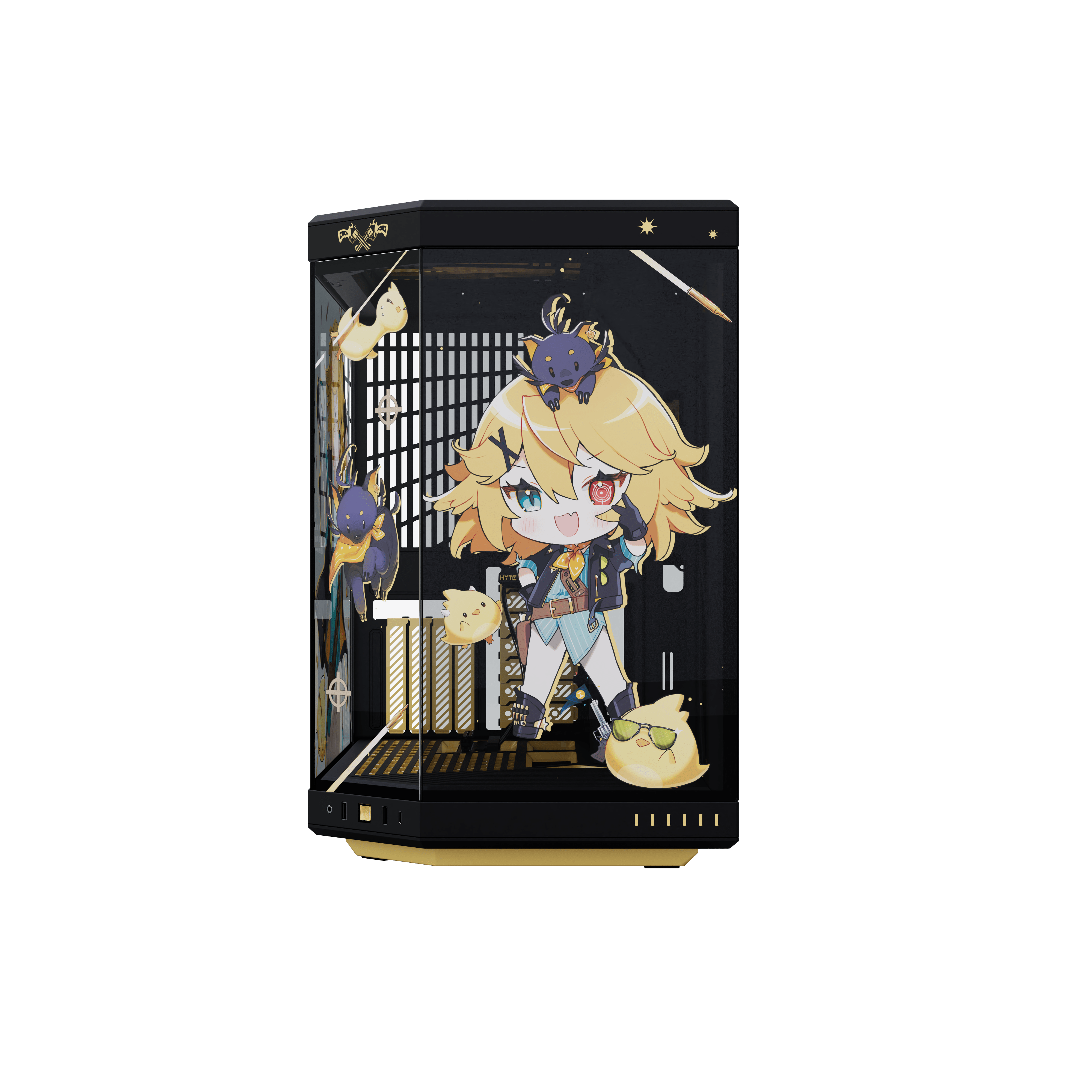

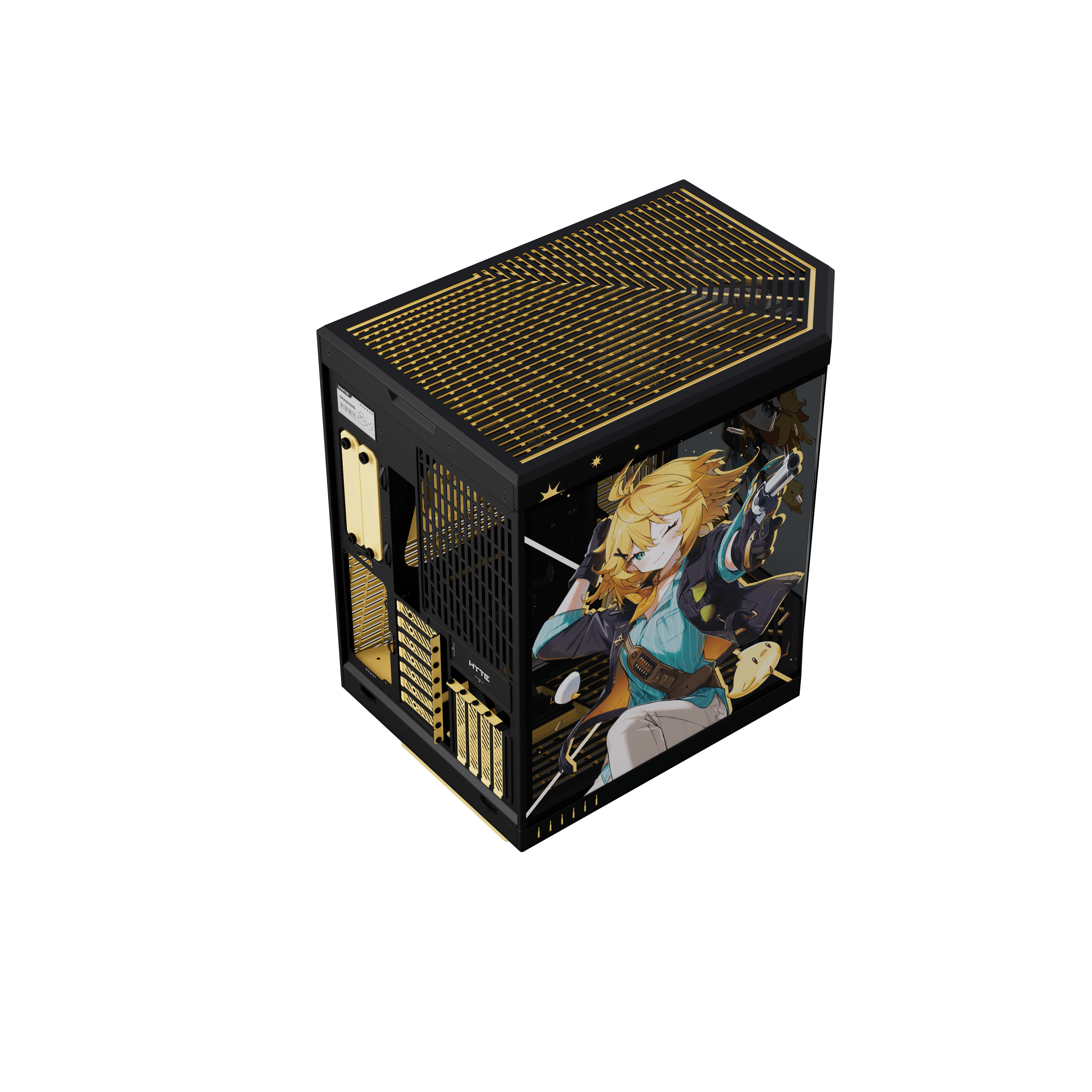

HYTE Y70 DOKIBIRD DRAGOON BUNDLE
Product Code : CS-HYTE-DOKI-Y70
12,990 ฿
Volume 70.7L
Weight: 29lbs
Case Dimensions: 470mm (L) x 320mm (W) x 470mm (H)
Case Materials: ABS, Steel, Tempered Glass
Color: Snow White, White/Black, Red/Black, Black
Motherboard Support: E-ATX, ATX, mATX, ITX
Power Supply: ATX up to 235mm in length
Video Card Max Dimensions: 422mm length, 105mm height (<90mm recommended for best cooling)
Top Radiator and Fan Support: 3x120mm or 2x140mm Fans, up to 360mm or 280mm long & 68mm thick Radiator
Side Radiator and Fan Support: 3x120mm or 2x140mm Fans, up to 360mm or 280mm long & 125mm thick Radiator
Rear Radiator and Fan Support: 1x120 or 1x140mm Fan, 120mm or 140mm Radiator
Bottom Fan Support: 3x120mm or 2x140mm Fans up to 32mm thick
CPU Cooler Height: Up to 180mm tall
Internal: 2.5” 4
Internal: 3.5” 2
Expansion Slots: 4 Vertical, 7 Half-Height
PCI Express Riser Cable: 4.0 x 16 (included)
Front USB-A: 3.2 Gen 1 2
Front USB-C: 3.2 Gen 2 1
Audio/Mic Jack: 1
Dust Filters: Top, Side, Bottom
Power Switch: Tactile Blue Mechanical
Nexus Powered: Yes, Nexus Touch
Warranty : 3 Years
Contact usDokibird Y70 Dragoon Bundle
Dokibird Limited Edition Bundle
It’s a dream come true, dragoons! Yee-haw!
In celebration of Dokibird's birday, HYTE presents our newest collaboration project featuring the Tomato Collection! Designed with Dokibird's newest skinsuit, HYTE's Modern Aesthetic Case, the Y70, is re-imagined through a new regal black & gold colorway! Hand-in-hand with Dokibird, HYTE has designed the case highlighting the dragoons, created from a fan for the fans. Exclusive only to the bundle, a shiny Dokibird holographic card and bubble sticker pack are also included. The bundle also contains a Dokibird Wall Scroll and Acrylic Keychain, which are available separately. Extremely limited pre-orders are now available on http://HYTE.com for orders within the US and CANADA with select distributors worldwide coming soon! Dragoons, join the Dokiverse and order yours now! #Dokibirday2024
"My lifelong goal and dream has finally come true, I can't believe it. It's time to finally upgrade your gaming rig and show the world that you're a proud Dragoon and ready to get those W's ????" -Dokibird
Artist: yenkoes
“Hello, I’m yenkoes! I’m an illustrator from Europe, specializing in character design and illustration. In collaboration with various companies and creators, I make promotional art, official goods visuals, character design, and more!”
Dokibird Y70 Bundle Accessories:
- Limited Edition Dokibird Y70 PC Case
- Dokibird Wall Scroll
- Dokibird Acrylic Keychain
- Exclusive Dokibird Bubble Sticker Pack
- Exclusive Dokibird Holographic Card
- Limited Edition PC Case Packaging
Product Features
Massive 4 Slot Vertical Graphics
Y70 grows GPU support to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful of graphics cards into your build with ease. Additionally, the cold floor cooling down below can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU.
Included Luxury PCIE 4.0 Riser Cable
Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.
Ginormous Cooling Capacity
A spacious interior makes room for up to a 360mm long & 125mm thick radiator on the side and adjustable top bracket that can house another 360mm radiator up to 68mm thick up above. Working together with the cold floor cooling at the bottom and spot for an additional fan at the rear of the case, Y70 has a total capacity of 10 fans in a fully populated chassis. With over 180mm of clearance to the side glass, air and water cooling enthusiasts alike will appreciate the flexibility afforded to them by the chassis to create the most robust cooling configurations possible.
Unified Modern Aesthetic
With 4 unique colorways, Y70 puts your build front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive
Tech Specs
Type: Dual Chamber Mid-Tower ATX Case
Exterior Dimensions: 470 x 320 x 470 mm
Volume (L): 70.7
Motherboard Sizes: ITX, mATX, ATX, EATX
Expansion Slots: 7 half + 4 full height
Riser Cable Included: Yes, PCIE 4.0 x 16
I/O: 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack
Dust Filters: Top, Side, Bottom
Top Fans: 3x 120 mm / 2x 140 mm
Top Radiator: 120-360, 140-280 @ 68 mm thick
Rear Fans: 1x 120/140 mm
Rear Radiator: 1x 120/140 mm
Side Fans: 3x 120 mm / 2x 140 mm
Side Radiator: 120-360, 140-280 @ 125 mm thick
Bottom Fans: 3x 120 mm / 2x 140 mm @ 32 mm thick
Max Video Card Length: 422 mm
Max Video Card Thickness: 105 mm
Max CPU Cooler Height: 180 mm
Max PSU Length: 235 mm
Storage: 2x 3.5" HDD or 4x 2.5" SSD
Warranty: 3 Years
