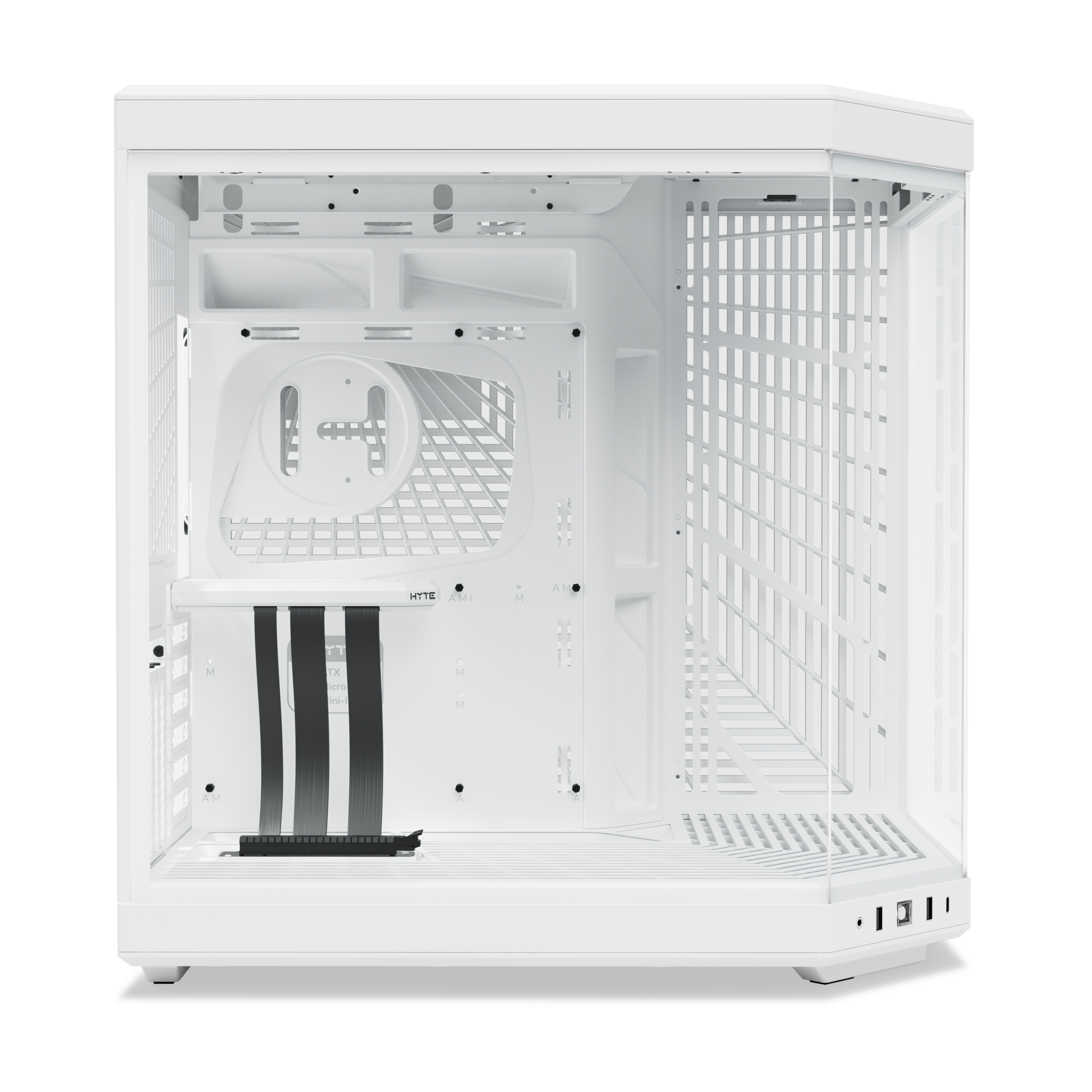

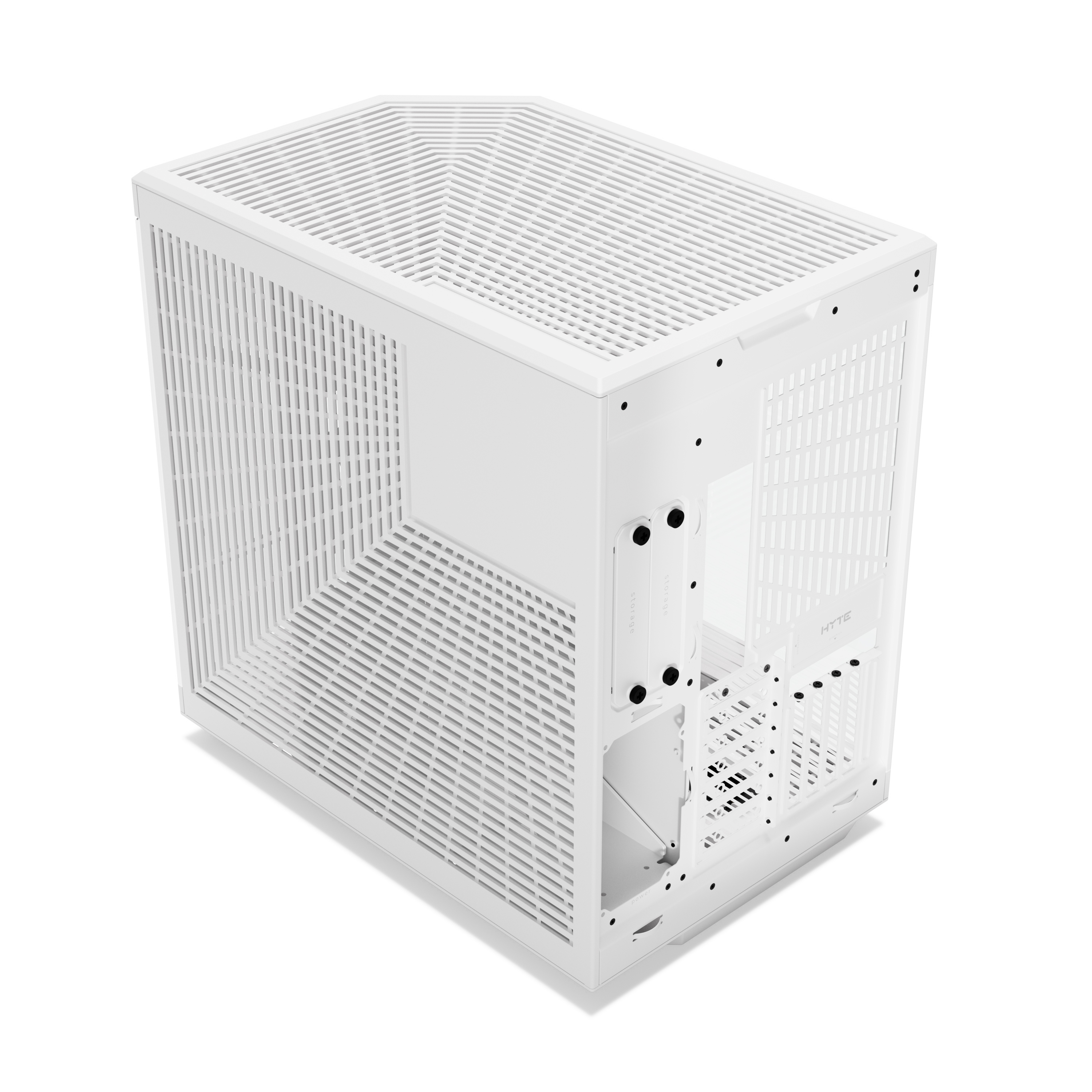

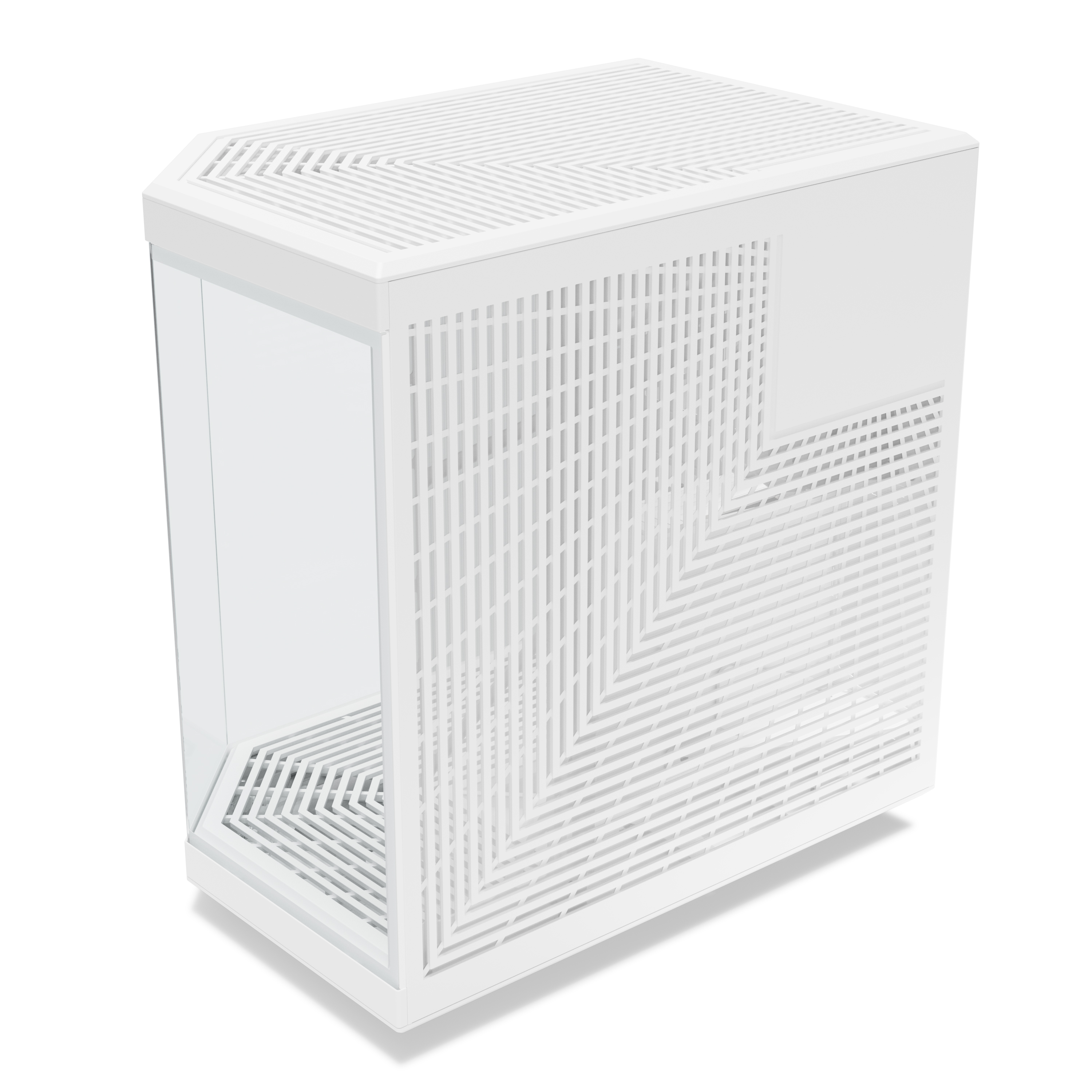

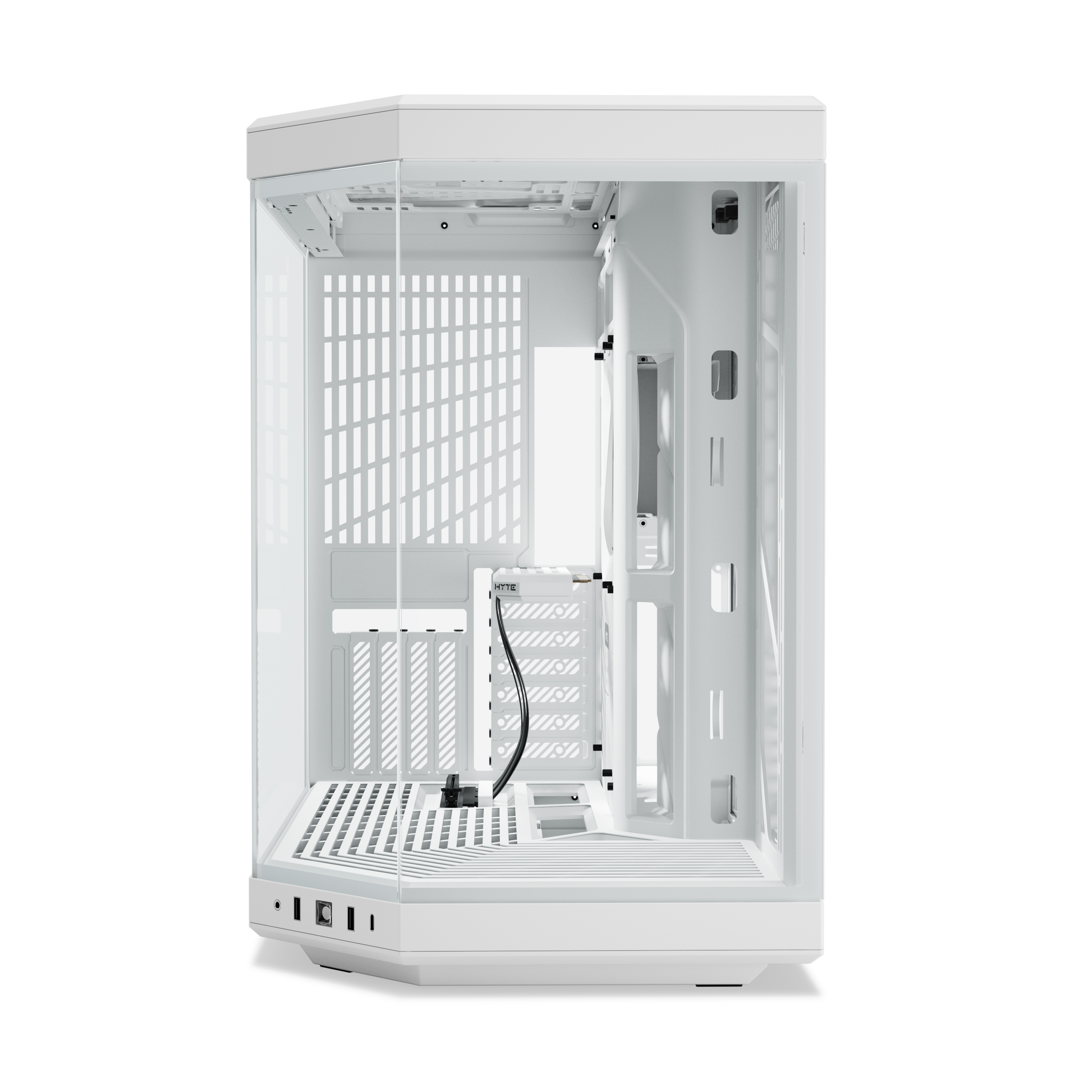

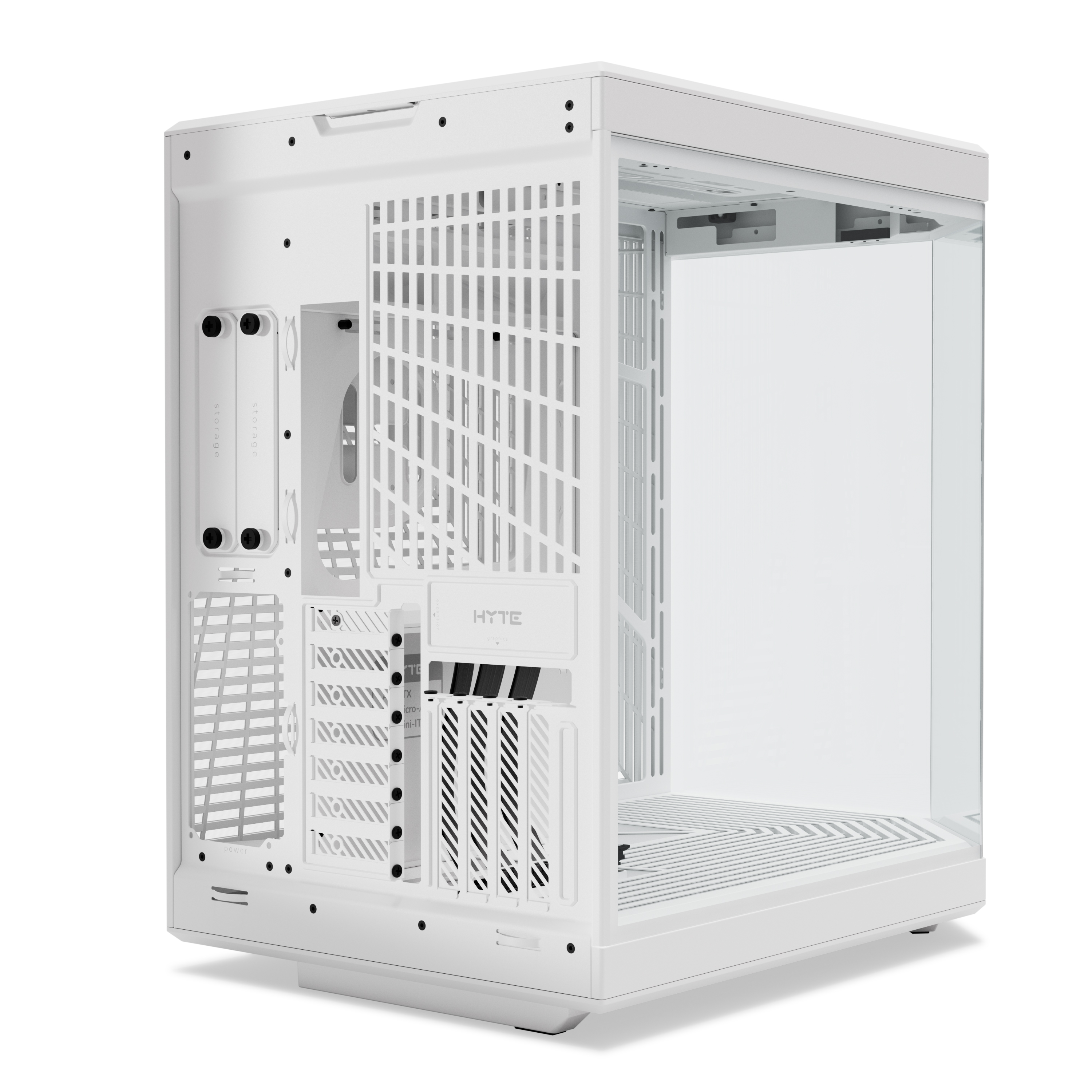

HYTE Y70 SNOW WHITE

Product Code : CS-HYTE-Y70-WW

8,490 ฿

Volume 70.7L
Weight: 29lbs
Case Dimensions: 470mm (L) x 320mm (W) x 470mm (H)
Case Materials: ABS, Steel, Tempered Glass
Color: Snow White, White/Black, Red/Black, Black
Motherboard Support: E-ATX, ATX, mATX, ITX
Power Supply: ATX up to 235mm in length
Video Card Max Dimensions: 422mm length, 105mm height (<90mm recommended for best cooling)
Top Radiator and Fan Support: 3x120mm or 2x140mm Fans, up to 360mm or 280mm long & 68mm thick Radiator
Side Radiator and Fan Support: 3x120mm or 2x140mm Fans, up to 360mm or 280mm long & 125mm thick Radiator
Rear Radiator and Fan Support: 1x120 or 1x140mm Fan, 120mm or 140mm Radiator
Bottom Fan Support: 3x120mm or 2x140mm Fans up to 32mm thick
CPU Cooler Height: Up to 180mm tall
Internal: 2.5” 4
Internal: 3.5” 2
Expansion Slots: 4 Vertical, 7 Half-Height
PCI Express Riser Cable: 4.0 x 16 (included)
Front USB-A: 3.2 Gen 1 2
Front USB-C: 3.2 Gen 2 1
Audio/Mic Jack: 1
Dust Filters: Top, Side, Bottom
Power Switch: Tactile Blue Mechanical
Nexus Powered: Yes, Nexus Touch

Warranty : 3 Years

Contact us
Description

Y70

Modern Aesthetic Case

Enhanced In Every Dimension

Y70 is an upgraded dual chamber ATX mid tower modern aesthetic case that delivers next gen gaming experiences with massive 4 slot vertical graphics and unlocks maximum performance via ginormous cooling capacity. All while celebrating your favorite hardware by showing off your PC the way it was meant to be seen.


Product Features

Massive 4 Slot Vertical Graphics

Y70 grows GPU support to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful of graphics cards into your build with ease. Additionally, the cold floor cooling down below can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU.


Included Luxury PCIE 4.0 Riser Cable

Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.


Ginormous Cooling Capacity

A spacious interior makes room for up to a 360mm long & 125mm thick radiator on the side and adjustable top bracket that can house another 360mm radiator up to 68mm thick up above. Working together with the cold floor cooling at the bottom and spot for an additional fan at the rear of the case, Y70 has a total capacity of 10 fans in a fully populated chassis. With over 180mm of clearance to the side glass, air and water cooling enthusiasts alike will appreciate the flexibility afforded to them by the chassis to create the most robust cooling configurations possible.


Unified Modern Aesthetic

With 4 unique colorways, Y70 puts your build front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive maintenance.


Tech Specs

Type: Dual Chamber Mid-Tower ATX Case

Exterior Dimensions: 470 x 320 x 470 mm

Volume (L): 70.7

Motherboard Sizes: ITX, mATX, ATX, EATX

Expansion Slots: 7 half + 4 full height

Riser Cable Included: Yes, PCIE 4.0 x 16

I/O: 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack

Dust Filters: Top, Side, Bottom

Top Fans: 3x 120 mm / 2x 140 mm

Top Radiator: 120-360, 140-280 @ 68 mm thick

Rear Fans: 1x 120/140 mm

Rear Radiator: 1x 120/140 mm

Side Fans: 3x 120 mm / 2x 140 mm

Side Radiator: 120-360, 140-280 @ 125 mm thick

Bottom Fans: 3x 120 mm / 2x 140 mm @ 32 mm thick

Max Video Card Length: 422 mm

Max Video Card Thickness: 105 mm

Max CPU Cooler Height: 180 mm

Max PSU Length: 235 mm

Storage: 2x 3.5" HDD or 4x 2.5" SSD

Warranty: 3 Years
