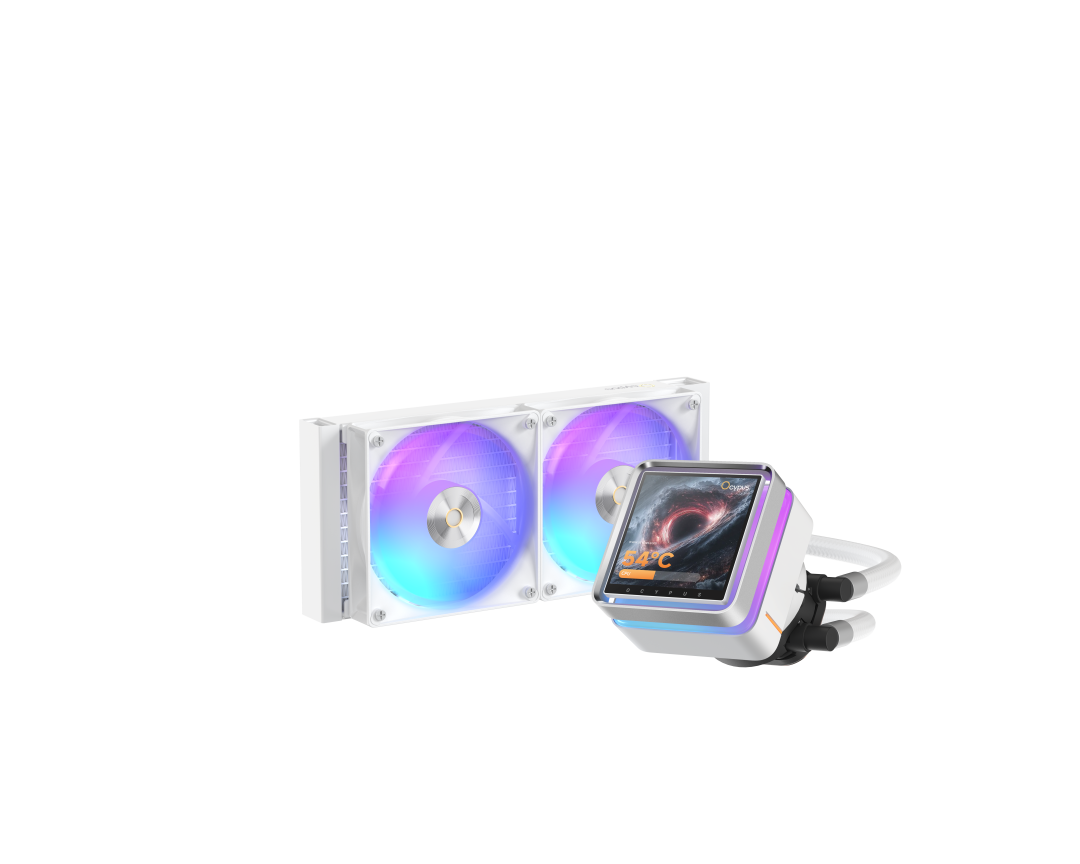

OCYPUS SIGMA L24 EX WHITE ARGB

Product Code : 6977414882857

3,790 ฿

Basic
TDP : 290W
CPU Socket Intel LGA : 115X/1200/1700/1851
AMD: AM4/AM5
Tube : 400*IDΦ6.5*ODΦ12.5mm
Fan Quantity : 2

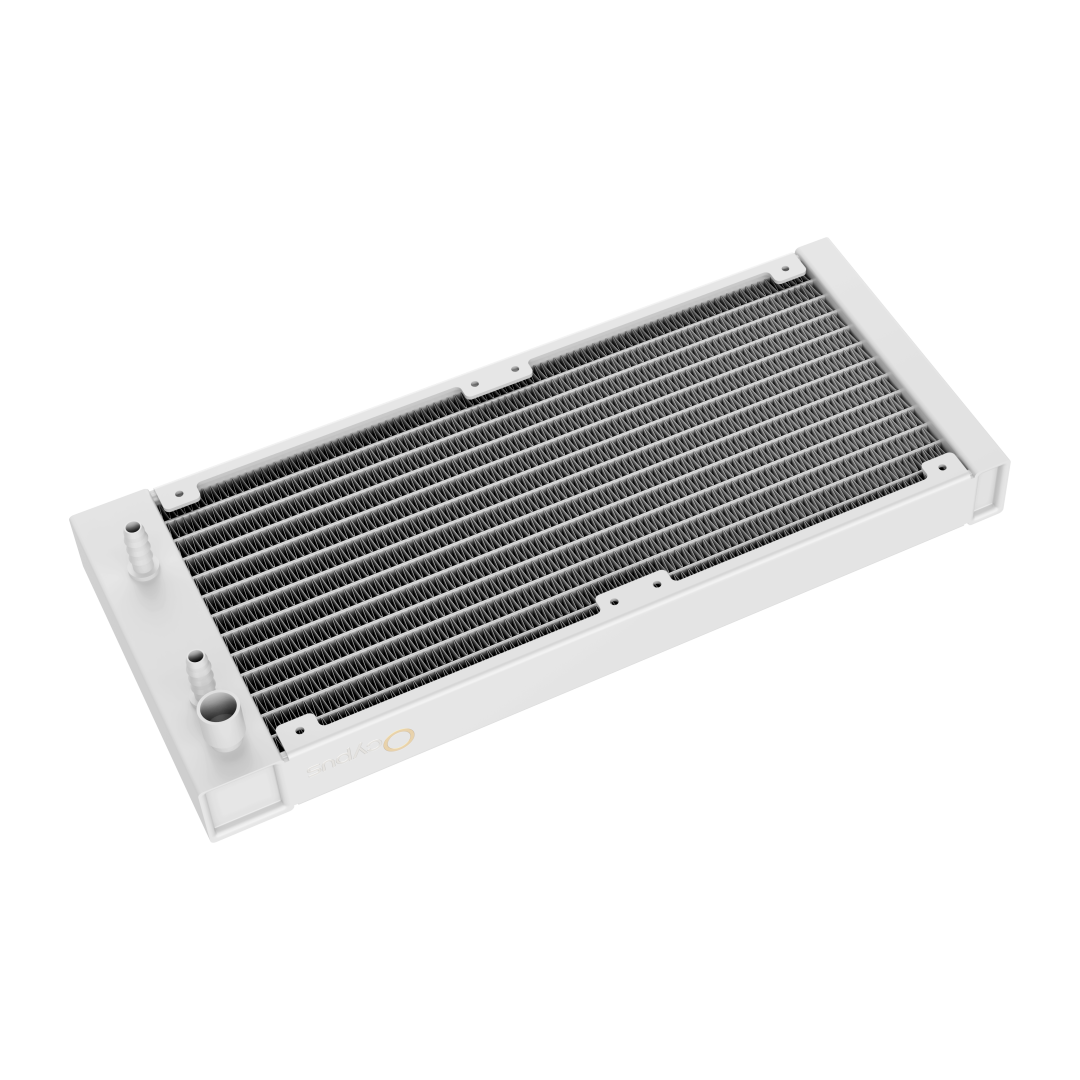

Radiator
Dimension : 397*120*27mm(LxWxH)
Material : Aluminium
Speed : 3100±10%RPM
Noise : ≤27dB(A)

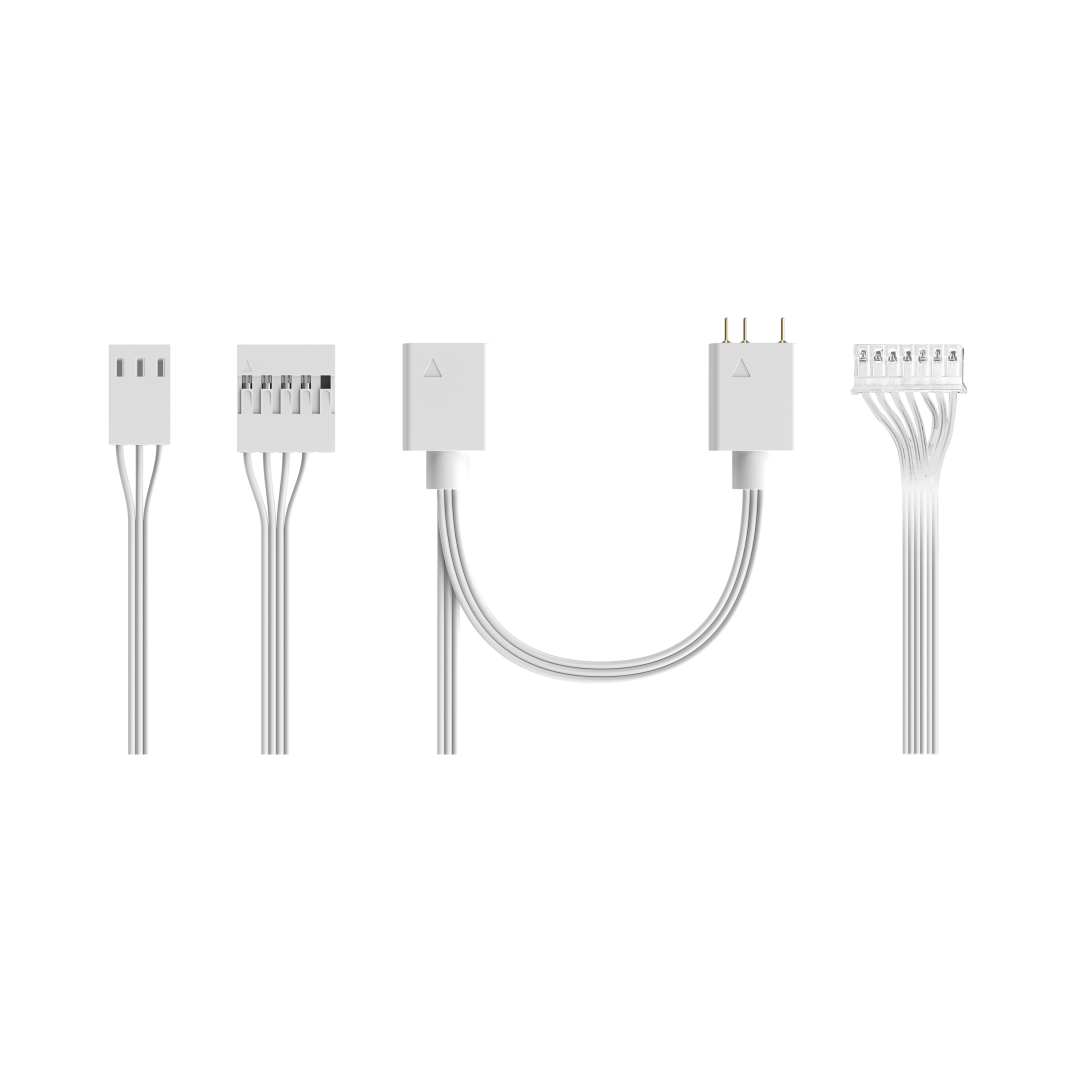

Connector : 3-Pin
Rated Voltage : 12VDC
Rated Current : 0.3A
Power Consumption : 3.6W
Bearing : Ceramic Bearing
Motor : Three-phase Six-pole Motor
MTBF : 30,000 Hours

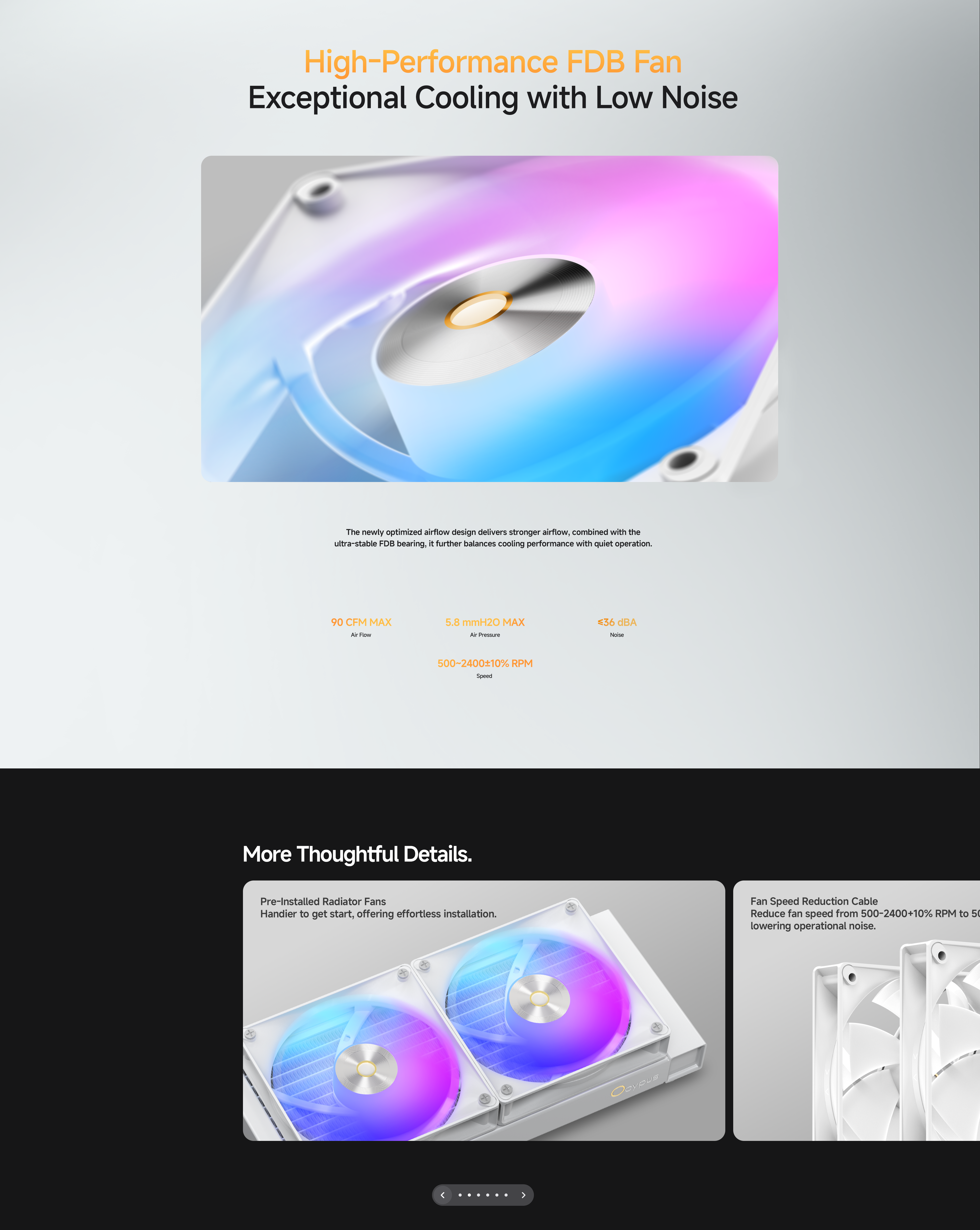

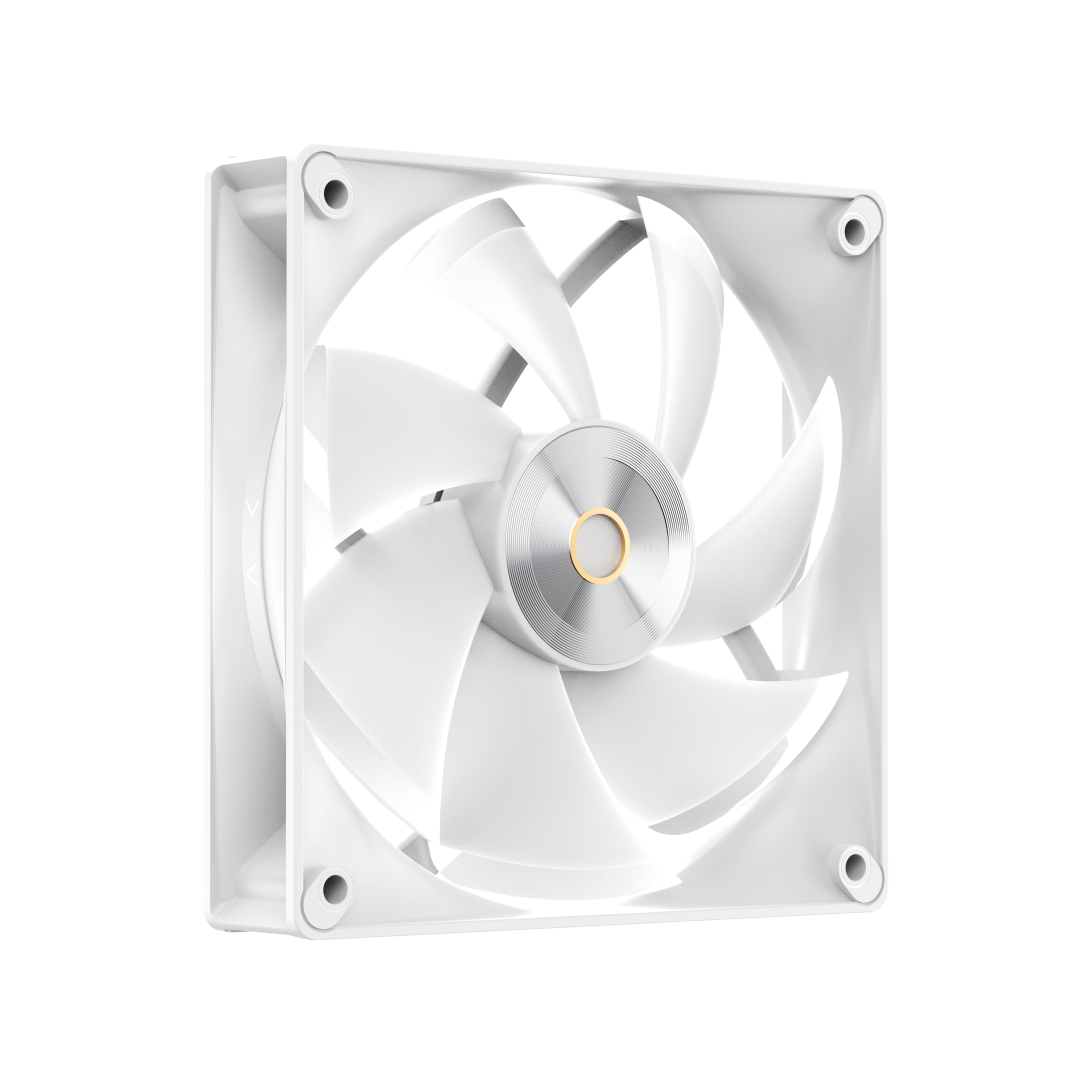

Fan
Dimension : 120*120*25mm (L×W×H)
Bearing Type : Hydraulic Bearing
Speed : 500~2400±10%RPM
500~2000±10%RPM (with speed-control cable)
Air Flow(MAX) : 88CFM
73CFM (with speed-control cable)
Air Pressure(MAX) : 5.7mmH2O
4.3mmH2O (with speed-control cable)
Noise ≤36dB(A)
≤29dB(A) (with speed-control cable)
Rated Voltage : 12VDC
Rated Current : 0.26A
Power Consumption : 3.12W
Connector : 4-Pin PWM

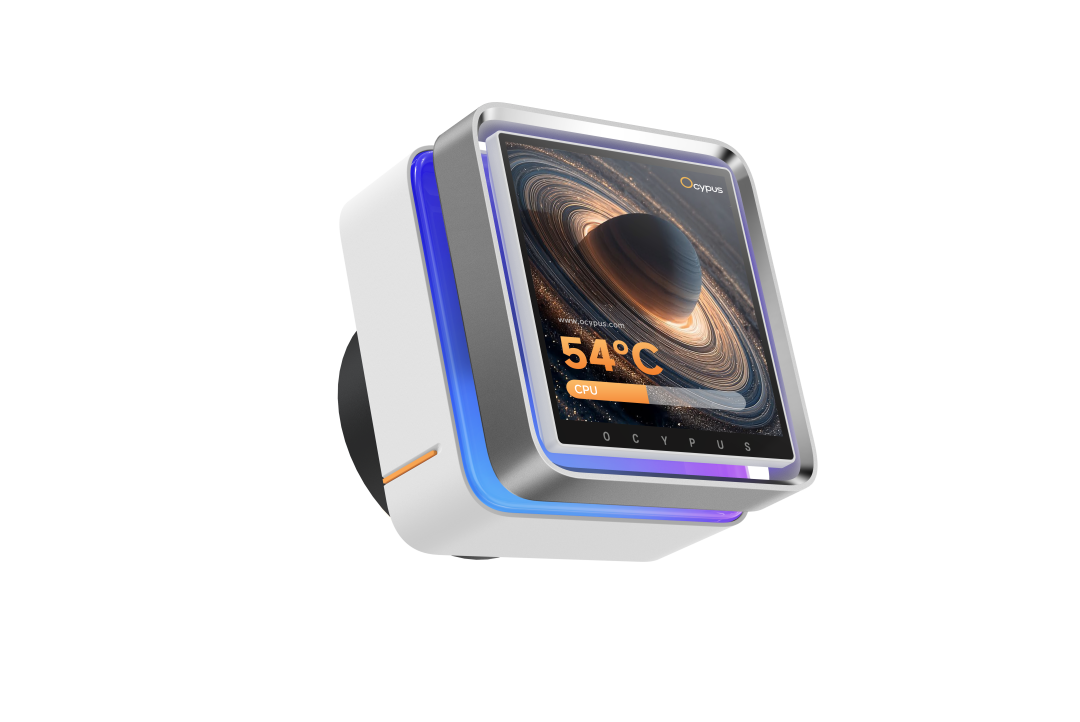

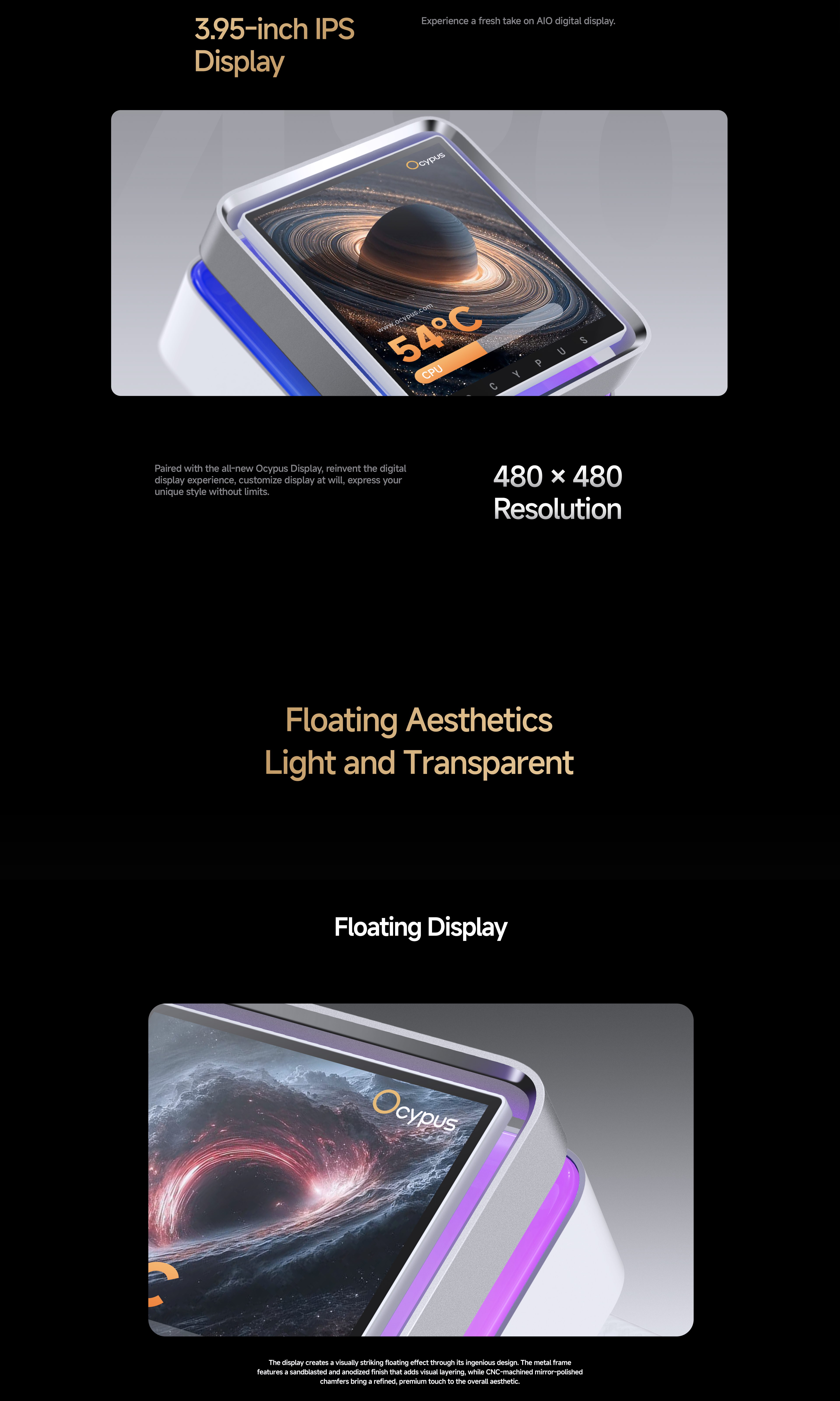

Pump Display
Size : 3.95 inch
Type : IPS
Resolution : 480*480px

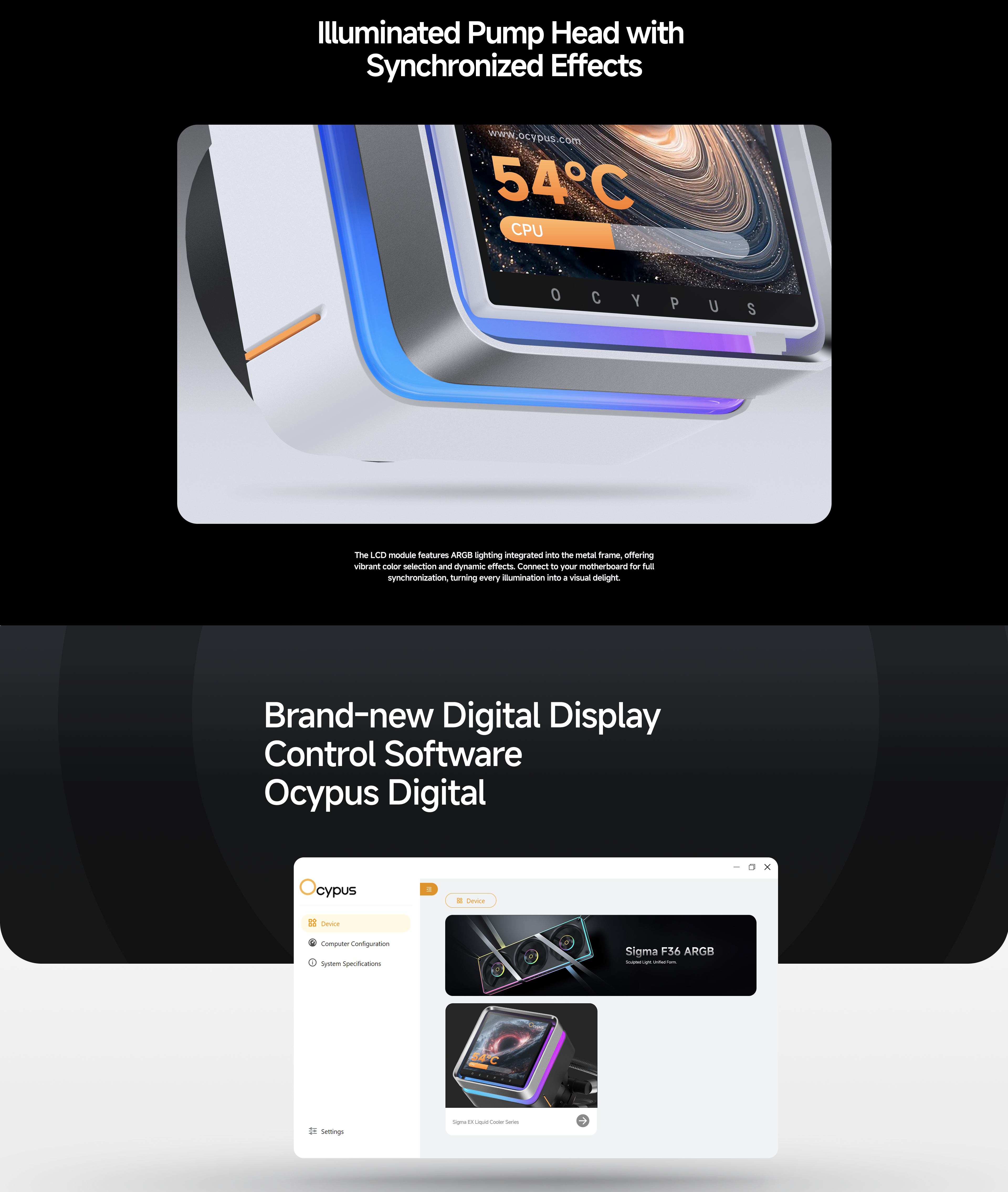

Pump LED
Type : ARGB
Connector : 3-Pin
Rated Voltage : 5VDC
Rated Current
Power Consumption
Fan LED
Type : ARGB
Connector : 3-Pin
Rated Voltage : 5VDC
Rated Current : 0.24A
Power Consumption : 1.2W

Product Code
EAN : 6977414882864
P/N : Basic
TDP : 310W
CPU Socket Intel LGA : 115X/1200/1700/1851
AMD: AM4/AM5
Tube : 400*IDΦ6.5*ODΦ12.5mm
Fan Quantity : 3

Radiator
Dimension : 397*120*27mm(LxWxH)
Material : Aluminium
Speed : 3100±10%RPM
Noise : ≤27dB(A)
Connector : 3-Pin
Rated Voltage : 12VDC
Rated Current : 0.3A
Power Consumption : 3.6W
Bearing : Ceramic Bearing
Motor : Three-phase Six-pole Motor
MTBF : 30,000 Hours

Fan
Dimension : 120*120*25mm (L×W×H)
Bearing Type : Hydraulic Bearing
Speed : 500~2400±10%RPM
500~2000±10%RPM (with speed-control cable)
Air Flow(MAX) : 88CFM
73CFM (with speed-control cable)
Air Pressure(MAX) : 5.7mmH2O
4.3mmH2O (with speed-control cable)
Noise ≤36dB(A)
≤29dB(A) (with speed-control cable)
Rated Voltage : 12VDC
Rated Current : 0.26A
Power Consumption : 3.12W
Connector : 4-Pin PWM
Pump Display
Size : 3.95 inch
Type : IPS
Resolution : 480*480px
Pump LED
Type : ARGB
Connector : 3-Pin
Rated Voltage : 5VDC
Rated Current
Power Consumption
Fan LED
Type : ARGB
Connector : 3-Pin
Rated Voltage : 5VDC
Rated Current : 0.24A
Power Consumption : 1.2W

Product Code
EAN : 6977414882857
P/N : Sigma-L24-WH2AAWLN00E-GL

Warranty : 5 Years
