THERMAL GRIZZLY WIREVIEW PRO II GPU 12V-2x6 NORMAL

THERMAL GRIZZLY WIREVIEW PRO II GPU 12V-2x6 NORMAL & REVERSE

THERMAL GRIZZLY WIREVIEW PRO II GPU 12V-2x6 is an advanced GPU power monitoring and safety device designed for modern high-performance graphics cards using the 12V-2x6 power connector. Developed for demanding PC enthusiasts, gamers, overclockers, system builders, and professional users, WireView Pro II provides detailed real-time information about GPU power consumption, current distribution, voltage, and connector temperature.

As graphics cards continue to demand higher power levels, monitoring the condition and behavior of the GPU power connection becomes increasingly important. WireView Pro II takes monitoring to the next level by measuring current individually on each pin of the 12V-2x6 connector rather than only displaying total power consumption. This allows users to identify unusual current distribution and potential contact-related issues much earlier.

Advanced Per-Pin Current Monitoring

One of the most important features of Thermal Grizzly WireView Pro II is its per-pin current measurement. Instead of simply showing the total power consumed by the graphics card, the device monitors the individual power pins of the 12V-2x6 connector.

This detailed monitoring can help users identify situations where current is distributed unevenly across individual pins. The device can display current in amperes for each pin, with visual limit indicators to make unusual values easier to recognize. WireView Pro II also provides per-pin voltage and power information, giving users a much more detailed overview of GPU power delivery.

320 × 170 Pixel TFT-IPS Color Display

The WireView Pro II features a 320 × 170 pixel TFT-IPS color display that provides easy access to important operating information directly from the device.

Users can select different display modes depending on the information they want to monitor. The Main View provides information such as per-pin monitoring, power consumption, connector detection, fan percentage, and output temperature. The Simple View focuses on total power, the highest-current pin, voltage, and the hottest sensor.

Additional monitoring pages provide dedicated views for current, voltage, power, and temperature. This makes WireView Pro II suitable for users who want detailed information while testing, gaming, benchmarking, or troubleshooting a high-end GPU.

Monitor Temperature at the 12V-2x6 Connector

WireView Pro II is not limited to electrical measurements. It also provides temperature monitoring at the input and output of the 12V-2x6 connector.

The package includes two external 10K NTC temperature sensors, allowing additional temperature measurements to be monitored. In total, the Temperature Monitor can display information from four temperature sensors.

The device can also provide audible and visual warnings when configured limits are exceeded, helping users recognize abnormal operating conditions more easily.

Integrated Semi-Passive Cooling

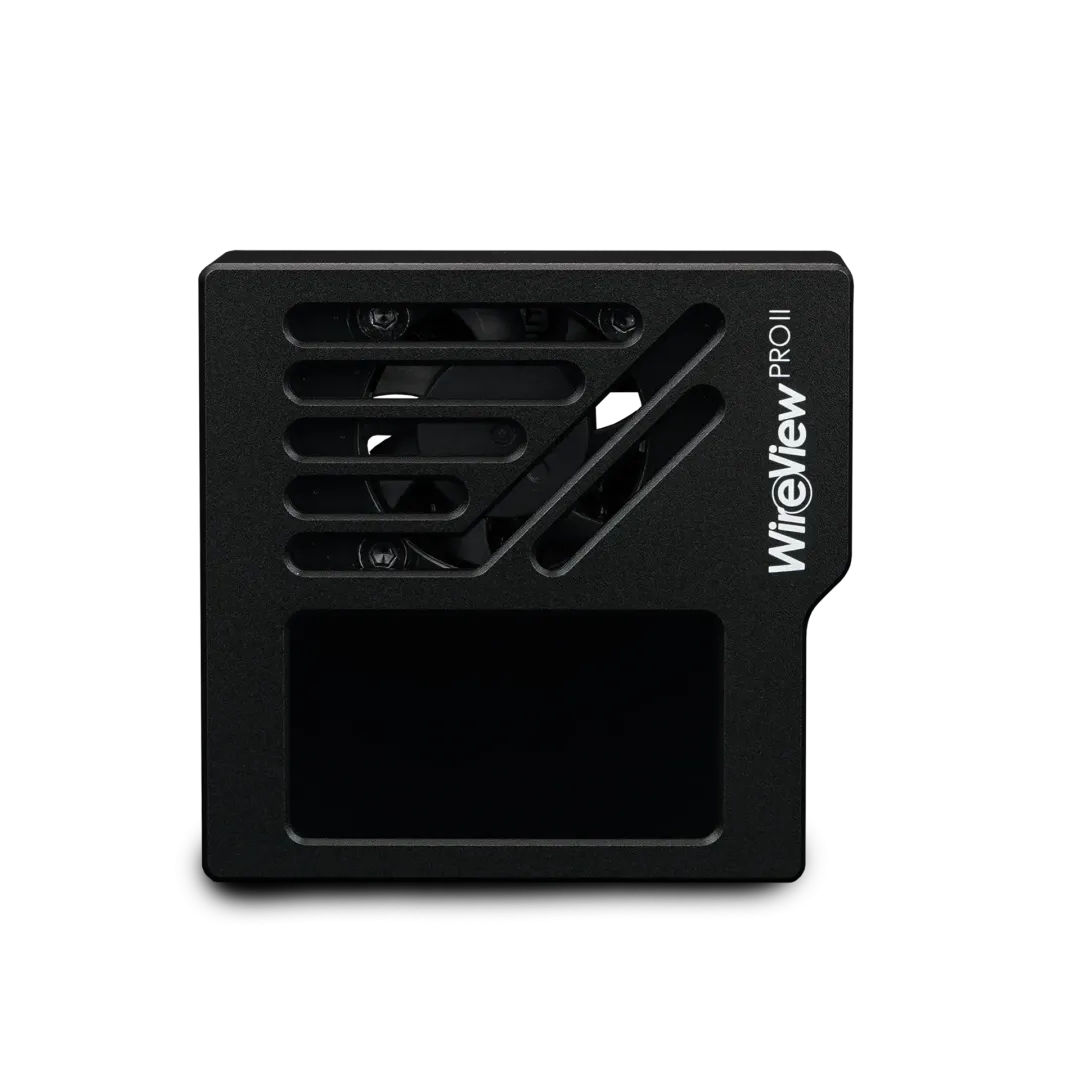

Because power connections can generate heat under high loads, Thermal Grizzly designed WireView Pro II with an integrated cooling solution. The device uses a CNC-machined aluminum housing that contributes to heat dissipation, together with a semi-passive 30 mm fan.

The fan is controlled according to temperature and power load. This means the cooling system can remain inactive when additional cooling is unnecessary and activate automatically as temperature or load increases. Optimized airflow through the PCB helps direct air around heat-relevant components.

Normal & Reverse 12V-2x6 Versions

Thermal Grizzly offers WireView Pro II in two connector orientations: Normal (N) and Reverse (R). Selecting the correct version is important because the orientation of the sensor and power pins varies between compatible graphics cards.

The Normal version is designed for graphics cards where the four sensor pins are positioned between the PCB and the 12 power pins. The Reverse version is designed for graphics cards where the 12 power pins are positioned between the PCB and the four sensor pins.

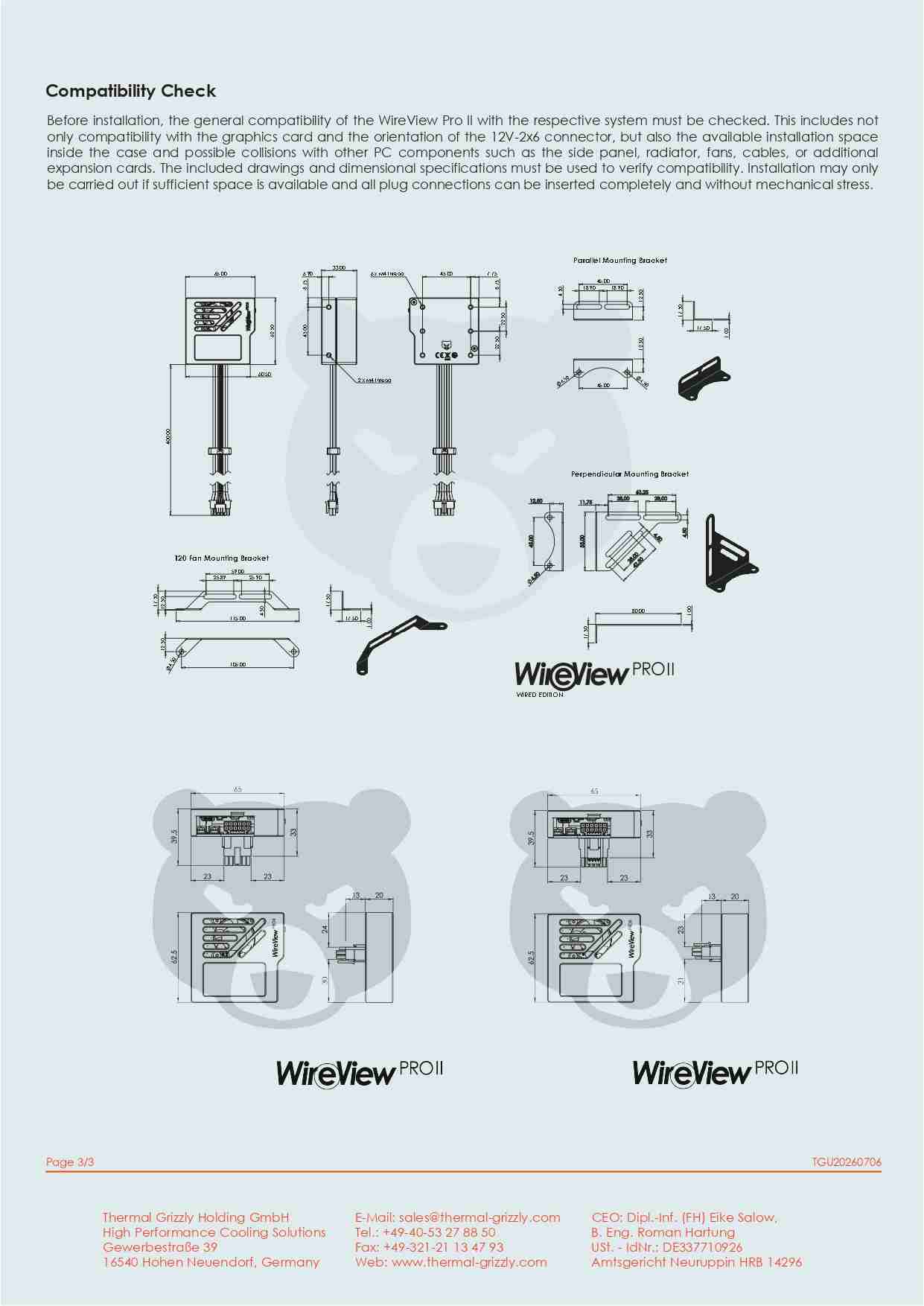

Before purchasing, users should check Thermal Grizzly's compatibility list and technical drawings to confirm the correct orientation and ensure sufficient clearance inside the PC case.

90-Degree Cable Routing

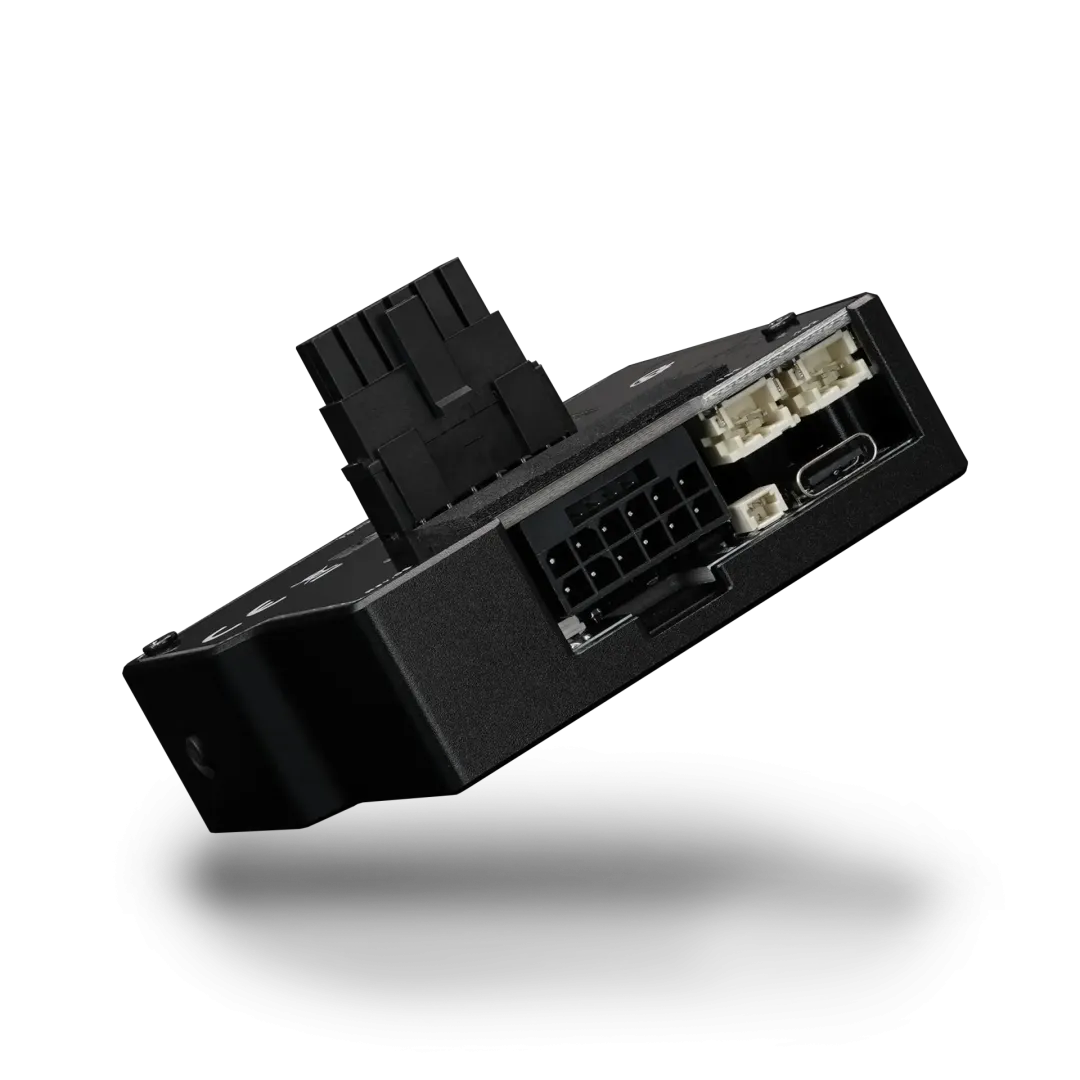

WireView Pro II also works as a 90-degree adapter, helping route the GPU power cable in a cleaner direction. This can improve cable management in modern PC builds where space around a high-end graphics card can be limited.

The display can also be rotated by 180 degrees through the settings, giving users more flexibility when installing the device in different configurations.

Automatic Data Logging

Another advanced feature is automatic operating data logging. WireView Pro II records information such as per-pin current, total power, and PCB temperature at regular intervals.

Thermal Grizzly states that the integrated memory can store up to approximately 340 days of continuous operation, or several years of typical gaming usage, before older records are overwritten. This information can be useful for analyzing unusual behavior and troubleshooting potential power-connection issues.

USB-C Connectivity and Firmware Updates

WireView Pro II includes a USB-C connection for user-performed firmware updates. An included USB-C to USB 2.0 internal connection cable allows the device to connect to the PC internally.

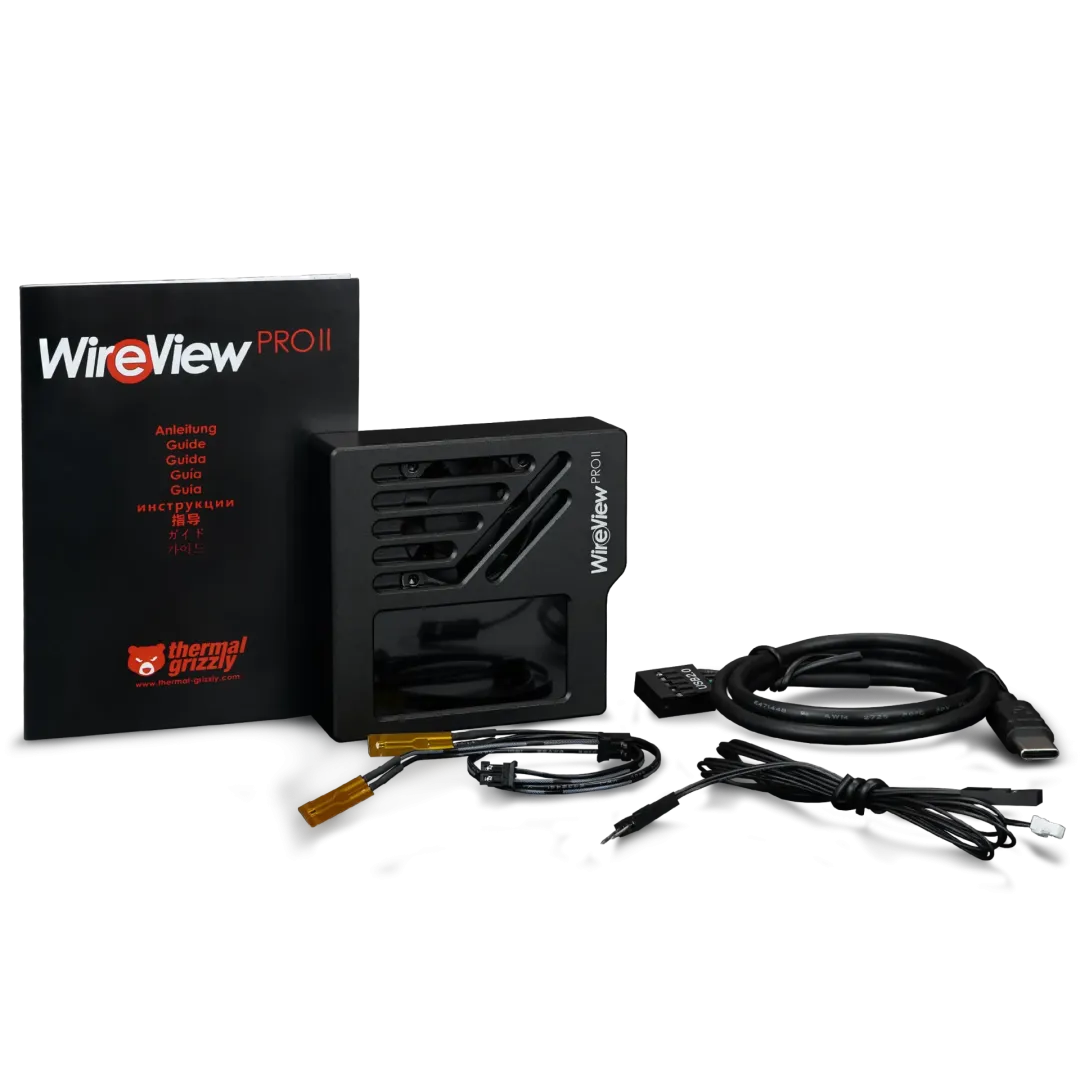

The package also includes a Y-splitter cable for the motherboard power function, as well as two temperature sensors measuring 5 cm and 20 cm in length.

Extended 2-Year Warranty

Thermal Grizzly provides an extended warranty period of 2 years from the date of purchase. According to the manufacturer's extended warranty information, if damage occurs to the graphics card's 12VHPWR or 12V-2x6 connector despite the integrated protective mechanisms, Thermal Grizzly will repair the damage or provide an equivalent replacement if repair is not possible, subject to the applicable warranty conditions. Proper use according to the manual and the GPU manufacturer's operating parameters is required.

Key Features

• Advanced GPU power monitoring device

• Designed for 12V-2x6 graphics card power connectors

• Normal and Reverse connector orientations

• Per-pin current monitoring

• Per-pin voltage and power monitoring

• Total GPU power monitoring

• 320 × 170 pixel TFT-IPS color display

• Input and output connector temperature monitoring

• Four temperature monitoring channels

• Two external 10K NTC temperature sensors included

• Semi-passive 30 mm cooling fan

• CNC-machined aluminum housing

• Automatic operating data logging

• 90-degree cable routing

• USB-C firmware update support

• Internal USB connection

• Audible and visual warning functions

• Measurement tolerance ±4%

• Extended 2-year warranty

• Available in Normal and Reverse versions

Conclusion

THERMAL GRIZZLY WIREVIEW PRO II GPU 12V-2x6 NORMAL & REVERSE is designed for users who want significantly more visibility into the power behavior of a high-end graphics card. With per-pin current monitoring, power and voltage measurements, connector temperature monitoring, automatic data logging, a TFT-IPS display, and integrated semi-passive cooling, WireView Pro II provides a comprehensive monitoring solution for modern GPU power connections.

The availability of both Normal and Reverse versions makes it important to select the correct model based on the graphics card's connector orientation and desired cable routing. For enthusiasts building powerful gaming PCs, benchmarking systems, workstation configurations, or custom high-end builds, WireView Pro II provides detailed monitoring information while adding a practical solution for cleaner 12V-2x6 cable management.
